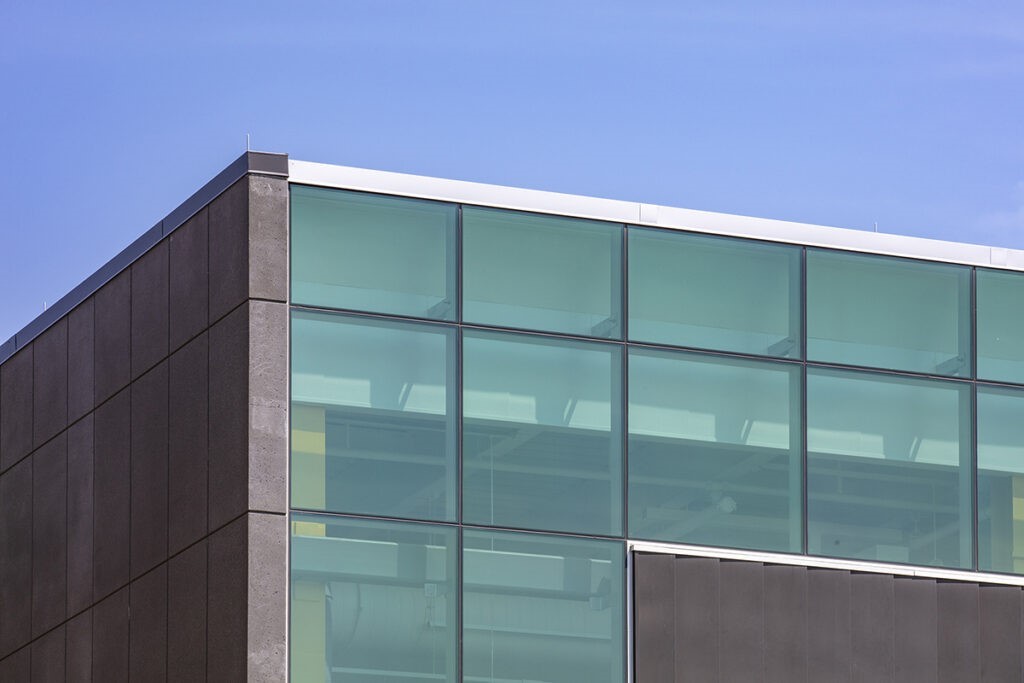

Clearwall® Curtain Wall System

The Clearwall® Curtain Wall uses an innovative 4-sided toggle glazed system to deliver highly desired aesthetics for low-rise applications. The toggle system reduces installation labor for inspired design and tight construction.

  • 5/8″ (15.9mm) exterior weatherseal sightline
  • 2-1/2″ (63.5mm) interior metal sightline
  • Variable depth
  • High thermal performance
  • 4-sided toggle glazed
  • Hurricane resistance
  • Seismic (AAMA 501.4 and 501.6 standards)

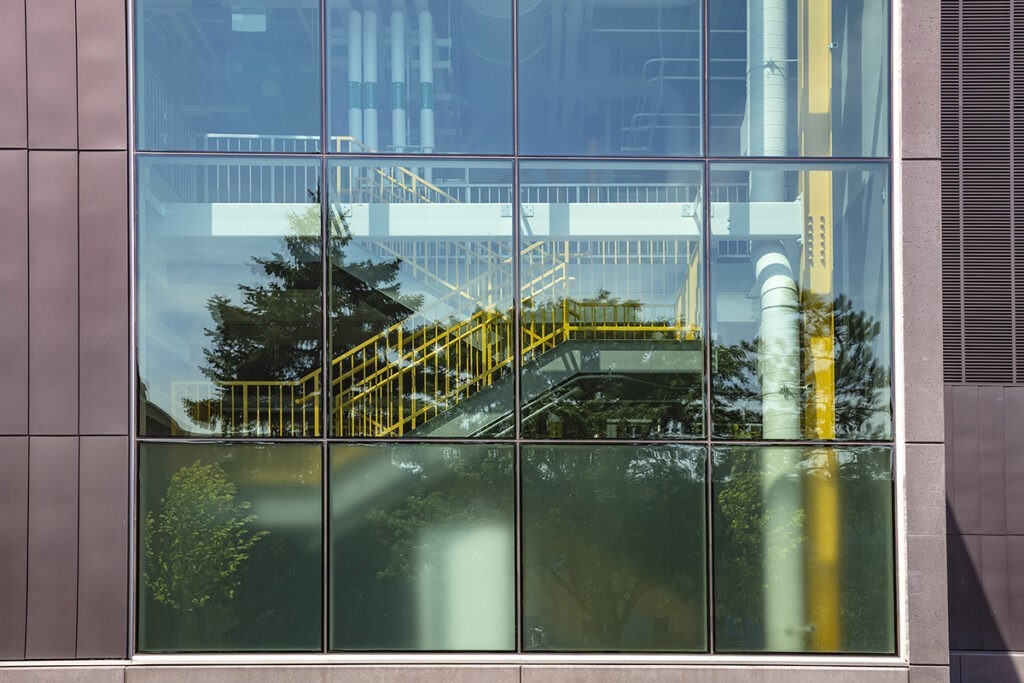

  • Achieves an all-glass monolithic aesthetic in a field glazed, screw spline or shear block fabricated application
  • 5/8″ (15.9mm) exterior vertical and horizontal weatherseal sightline
  • 2-1/2″ (63.5mm) interior metal sightline
  • Innovative toggle assembly captures glass, eliminating field application of structural silicone
  • All three glazing options use the toggle-based glass retention system
  • Clearwall® SS (screw spline) or SB (shear block)
  • Toggles capture 1-1/8″ (28.6mm) insulating glass unit, with a recessed spacer
  • Inside lite of insulating glass unit is directly engaged by toggles
  • No structural silicone required
  • Clearwall® SSI (screw spline interface) or SBI (shear block interface)
  • Toggles capture standard 1″ (25.4mm) insulating glass unit attached with shop-applied metal interface using structural silicone

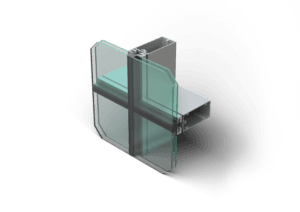

  • Clearwall® SSIT (screw spline interface tape) or SBIT (shear block interface tape)
  • Toggles capture standard 1″ (25.4mm) insulating glass unit attached with shop-applied metal interface using 3M™ VHB™ SGT (structural glazing tape)
  • Screw spline joinery method allows shop assembly of ladder sections, reducing field labor
  • Shear block joinery and deeper mullions allow for higher free spans (up to 26′ with steel reinforcing)
  • Clearwall® can be supplied fabricated or in stock lengths
  • Silicone compatible EPDM glazing materials for long-lasting seals
  • Offers integrated entrance framing systems
  • Permanodic® anodized finish choices
  • Painted finishes in standard and custom choices
  • Comprehensively tested to latest high-performance standards
  • Full technical support from 3M™ for application of the 3M™ VHB™ SGT (structural glazing tape) for Clearwall® SSIT and SBIT

Optional Features

  • Air barrier and backpan applications available
  • Profit$Maker® Plus die sets
  • Hurricane impact resistant for SSI and SSIT
  • Dual-color option

Product Applications

  • Ideal for low-rise applications of four floors or less requiring a sleek, uninterrupted all-glass facade
  • Ideal for office buildings and lobbies or accent walls of high-profile buildings
