Versoleil® SunShade – Single Blade System – for Storefront

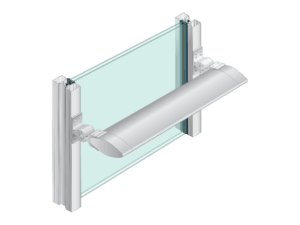

The Versoleil® SunShade Single Blade System adds aesthetic appeal to any building envelope. Seamlessly incorporated into multiple storefront framing systems in horizontal configurations, the Single Blade System gives architects flexibility and several combinations to craft their vision while controlling solar heat gain and glare.

  • 6″ (152.4mm) to 14″ (355.6mm) depth
  • Compatible with storefront framing
  • Various blades and angle options
  • Potential Leadership in Energy and Environmental Design (LEED) credits
  • Standardized solution for seamless integration with Trifab® Versaglaze® 451/451T/451UT and IR501UT storefront framing systems
  • Innovative mounting design allows for multiple blade angles
  • Tested for combined wind, snow and dead loads
  • Multiple blade sizes ranging from 6″ (152.4mm) to 14″ (355.6mm) deep
  • Screw spline construction
  • Design allows for thermal expansion and contraction
  • Permanodic® anodized finish choices
  • Painted finishes in standard and custom choices
  • Shading performance can be analyzed by Solector® Sun Shading Estimator Tool

Product Application

  • Storefronts
  • Enclosures to hide roof-mounted machine rooms or mechanical systems
  • Interior aesthetic application

Check out our Solector® Sun Shading Estimator.



Thermal Technology

Find out more here.

Versoleil® SunShade - Single Blade System for Storefront - Architectural Detail Manual
