Versoleil® SunShade – Single Blade System – for Curtain Wall

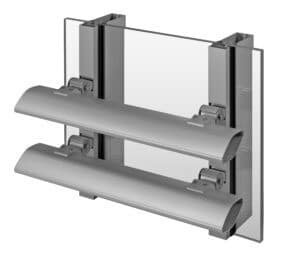

Pre-engineered for multiple Kawneer curtain wall systems, Versoleil® SunShades provide design flexibility and versatility in both form and function. Highly-configurable blade options allow for maximum shading and energy-saving potential.

  • 6″ (152.4mm) to 14″ (355.6mm) depth
  • Compatible with curtain walls
  • Variable blade and angle options
  • Potential Leadership in Energy and Environmental Design (LEED) credits
  • Standardized solution for seamless integration with 1600 Wall System®1, 1600 Wall System®2, 1600 Wall System®5, 1600UT System™1, 1600UT System™2, 1600 SS and 1600 SS SSG Curtain Wall Systems
  • Highly versatile design allows for blades to be mounted in horizontal or vertical configurations
  • Innovative mounting design allows for multiple angles in both horizontal and vertical configurations
  • Tested for combined wind, snow and dead loads
  • Thermally broken attachment method for 1600 Wall System®1, 1600 Wall System®2 SSG, 1600 SS and 1600 SS SSG Curtain Wall Systems
  • Inside and outside 90° and 135° corners available
  • Multiple blade sizes ranging from 6” (152.4mm) to 14” (355.6mm) deep
  • Screw spline construction
  • Ability to have multiple rows of horizontal single blades per opening
  • Design allows for thermal expansion and contraction
  • Permanodic® anodized finish choices
  • Painted finishes in standard and custom choices
  • Shading performance can be analyzed by Solector® Sun Shading Estimator Tool

Check out our Solector® Sun Shading Estimator.
